Weber MT
CR 6 Reversible Plate Compactor 400kg Class
Key features
- 55 kN Compaction Force
- 412kg
- Hatz Engine
Add COMPATROL® compaction technology, MDM engine management, and the renowned WSA Weber Smart Assist.
Three highly beneficial additions - see below for more details.
Pickup in store
Need more info or want to know if this model is best for you?
Get in touch with the team at OMC
Product details
Technical Specs
The CR 6 H is extremely popular with Kiwi contractors and civil construction companies, renowned for its balanced operating characteristics and exceptionally smooth operation. Made in Germany, this unit offers low hand-arm vibrations provide for superb ease of use and optimal comfort with an impact power of 55 kN. The standard operating width is 590mm (expandable).
Key Benefits
- 55kN Compaction Force
- 412kg
- Width 590mm
- With optional COMPATROL® compaction technology, MDM engine management, and Weber Smart Assist
- Forward and reverse travel
- Infinitely variable hydraulic control for precise work even under adverse conditions
- Height-adjustable guide bar and low vibration handle
- Low-maintenance design due to self-adjusting centrifugal clutch
- Large, hinged lifting ring and additional eyelets in engine console for safe transporting
- Electric start with operating hour meter as well as oil and voltage control
All-around engine enclosure for fully protected engine
An all-around enclosure and the sturdy frame provide full protection for the engine, thereby increasing operational reliability. Meanwhile, the maintenance door in the front of the machine provides easy access to all essential maintenance points.
Industry-leading anti-vibration handles
Industry-leading anti-vibration handles are a dream to use and result in significantly reduced operator fatigue.
Popular model
The CR 6 CCD is one of our top sellers of reversible plates. An excellent choice for trench work or for general compaction tasks in road construction, civil engineering or the landscaping sector.
Ideal Applications
For trench work or for general compaction tasks in road construction, civil engineering or the landscaping sector, the CR6H is always the right choice. Depending on conditions it achieves a compaction depth of up to 600 mm.
Warranty
Weber MT products come standard with an industry leading 2 Year Manufacturer's warranty, for complete peace of mind in a tough operating environment.
With full parts and service backup available New Zealand wide, you can be sure that any piece of Weber MT equipment will go the distance for your company.
| Operating Weight | 414 kg |
| Working Width | 590 mm |
| Compaction Force | 55 kN |
| Frequency | 72 Hz |
| Engine | Hatz 1B40 Diesel Engine |
| Power Output | 7.5 kW (10.3 HP) |
Add COMPATROL®, MDM & Weber Smart Assist.
Unique and highly beneficial additions for all users.

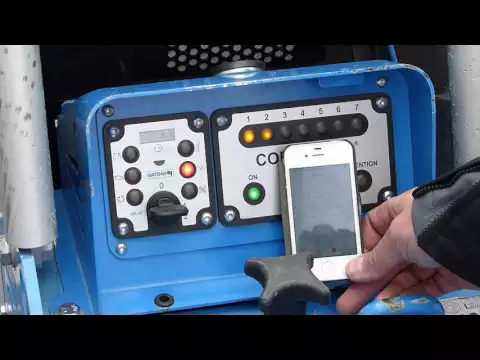

What is COMPATROL®?
Never have to guess compaction levels again with smart, timesaving technology that measures and visually reports the compaction level - Cuts compaction passes by up to 25% - Weak points in the soil are detected and eliminated immediately - Notifies you when soil is sufficiently compacted Anyone can be a compaction expert with the COMPATROL® compaction control system. COMPATROL® provides the additional advantage of continuous compaction control and quality assurance of the compaction work performed. It's a unique benefit of the Weber MT machines, and is highly beneficial for all users.
What is MDM?
MDM smart engine management is the gold standard in engine management technology, providing valuable service information about your plate compactor. With COMPATROL® Compaction Technology & MDM Engine Management, compaction just gets better.
What is WSA?
Weber Smart Assets (WSA) holds all the benefits of Compatrol and MDM, as well as giving you the ability to fine tune your compaction by changing the compaction levels and rates. The ability to personalise the compaction to the site is a unique benefit and can help you get precision in your compaction.
