Trime
Tekno TKS-50-SKID Dust Suppression Miniblower
Key features
- Electic tilting system
- 340° automatic oscillation
- Remote control system
Ideal for dust suppression in medium/large size outdoor areas. Fully automatic, used in mines, quarries and demolition, recycling and odour removal. Useful also for sterilization and sanitation.
Pickup in store
Need more info or want to know if this model is best for you?
Get in touch with the team at OMC
Product details
Technical Specs

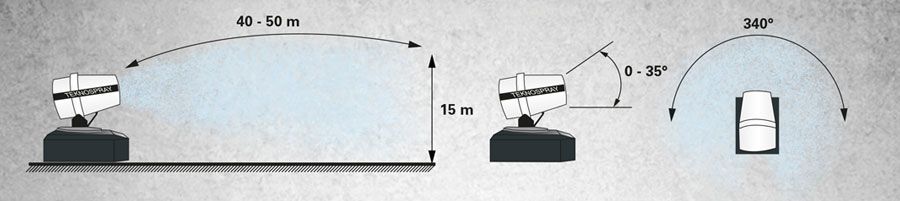

Up to 340 degrees Automatic Oscillation
The Trime Miniblower Dust Suppression unit features an automatic oscillation with a manually adjustable working angle, which allows you to easily set the coverage range making sure to get the spray where you need it.
Easy Handling & Transport
Equipped with stainless steel trail with forklift pockets and a central lifting eye, the Trime TKS-50 Dust Suppression unit is easy to transport to and from sites. Additional large wheels make this unit ideal for off-road, or rough terrain.
High Power Nebulization
The Trime Miniblower Dust Suppression unit delivers high nebulization power, ensuring optimal coverage and suppression of dust. With a 900mm fan diameter, and a stainless steel crown fitted with 24 nozzles, this blower delivers a quality, even spray, that will bring the dust to the ground.
100% Electric Powered
The Trime Miniblower Dust Suppression unit is easy to hook up to your 20 KVA onsite Generator.
Make your site safer with the TKS-50
Ensure your site stays healthy and clean with the Trime TKS-50 Dust Suppression unit. Minimising dust on construction sites, mines, and other working sites is critical, especially when working in urban areas. Minimising health risks for not only your staff, but also others around the site.
| Electric engine power | 15kW |
| Inlet plug | 400V 3P+N+T 50Hz A |
| Fan diameter | 900mm |
| Water comsumption | 37 - 43 liters per minute |
| Coverage (without wind) | 40m -50m |
| Max water throw height | 15m |
| Water connection | UNI45 or STORZ or CAMLOCK |
| Min inlet water pressure | 1bar |
| Generator type required | 20kVA |
| Water inlet filter | 60Mesh |
| Y FIlter | 500um |
| Electric tilting system | to 35° |
| Automation oscillation | 340° |
| Weight | 790kg |
| Dimensions (LxWxH) | 1719mm x 1345mm x 2065mm |
Other great features of the TKS-50 Dust Suppression Unit
| Remote control with 50-meter range: Control this unit from a distance with the easy to use remote control. |
| Nozzles: Stainless steel crown with 24 nozzles for an even spray. |
| Smart Start System: The smart start system on the TKS-50 Dust Suppression unit means that you only need a 20KVA Generator to power it. |
| Fitted with a central lifting eye for easy transport |
| Emergency stop button for safety |
| Phase inverter |
| Safety Automatic Clutch |
| Galvanised SKID base with forklift pockets |
