MultiOne Loaders
MultiOne 5.2 Series Loader
Key features
- Powered by Kubota D902 Stage V Diesel Engine
- Double-H Self-Levelling Telescopic Boom
- 36 L/min Hydraulic Flow
Pickup in store
Need more info or want to know if this model is best for you?
Get in touch with the team at OMC
Product details
Technical Specs
Compact and capable — the MultiOne 5.2 K delivers exceptional performance in tight spaces while remaining light and trailer-towable. Designed in Italy and built for professional use, it combines a 25 HP Kubota diesel engine with hydrostatic 4WD Direct Drive motors for smooth and efficient operation.
With a 2.75 m self-levelling telescopic boom and an 890 kg maximum lifting capacity, the 5.2 K offers the perfect balance of strength, stability, and compactness (only 1.09 m wide on standard tyres). It handles a wide range of attachments and tasks — from landscaping and nursery work to property maintenance and construction applications.
Built with MultiOne’s signature unbreakable body panels and ergonomic operator comfort, the 5.2 K features a fully adjustable suspension seat, LCD service display, and Dynamic Block System (DBS) traction control for maximum performance on any surface.
Key Benefits
• Kubota D902 Diesel Engine (3 Cylinder, Water-Cooled)
• 25 HP (18.6 kW) Power Output – Stage V Compliant
• 14 km/h Maximum Travel Speed
• 890 kg Maximum Lifting Capacity (Straight)
• 36 L/min Auxiliary Hydraulic Flow
• 2.75 m Maximum Lift Height
• ROPS/FOPS Level I Cab Protection
• Unbreakable Composite Body Panels
• Dynamic Block System (DBS) Traction Control
The MultiOne 5.2 K represents true Italian engineering for New Zealand operators — efficient, strong, and simple to transport. Backed nationwide by OMC Power Equipment’s workshops in Christchurch and Auckland, it’s built for years of reliable service in demanding conditions
| Engine | Kubota D902 – 3 Cylinder Diesel, Water-Cooled |
| Emission Standard | EU Stage V / Tier 4 Final |
| Power | 18.6 kW (25 HP) |
| Transmission | Hydrostatic 4WD Direct Drive Motors with Proportional Servo Control |
| Drive Speed (Max) | 14 km/h |
| Auxiliary Hydraulics | 36 L/min Flow Rate |
| Maximum Lift Height | 2.75 m |
| Tipping Load (Max) | 1,120 kg (approx.) |
| Lifting Capacity (Straight) | 890 kg |
| Breakout Force @ 50 cm | 800 kg |
| Pushing Force | 900 kgf |
| Average Ground Pressure | ≈ 850 kg/m² |
| Turning Radius (Inside/Outside) | 800 / 2000 mm |
| Standard Tyres | 23 × 10.50-12 ET-25 |
| Operating Weight | 1,000 kg (approx.) |
| Dimensions (L × W × H) | Approx. 2600 × 1090 × 1960 mm (with standard tyres) |
| Warranty | 2 Years Full Commercial |
Key Benefits

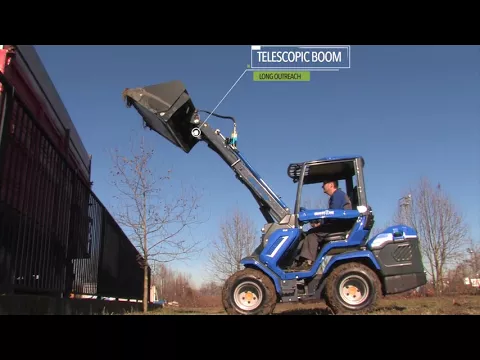

Telescopic Boom
Telescopic boom with double H frame for extra strength. It allows reaching considerable load heights, ensuring an excellent visibility of the load at any time.
Self Levelling Boom
This is an ideal device for lifting heavy loads safely. It is installed on the machine boom and keeps the load level, without the need to continuously correct the position with the joystick.
Heated Seat
Ergonomic heated seat with armrests and seat belt. Ideal for cold climates, it significantly increases the comfort of the machine.
Unbreakable Body Panels
The resistance and flexibility of the compound used let the panel absorb shocks, deform, and go back to its original shape.
Dynamic Block System
The DBS diverts oil flow between the left & right side hydraulic wheel motors: the hydraulic oil flows in parallel between the hydraulic wheel motors on each side operating similar to a differential lock.
Hydraulic Multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
With over 170 attachments available.
MultiOne has a decade-long experience of designing and implementing dedicated attachments. This know-how assures the best attachments for mini loaders are branded MultiOne.
Whether you are an Orchardist, Arborist, Contractor, Landscaper, Farmer - there's attachments to handle the job.
